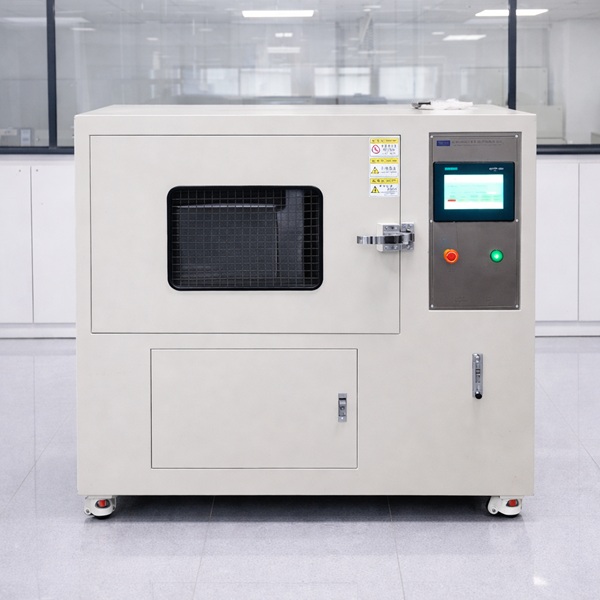

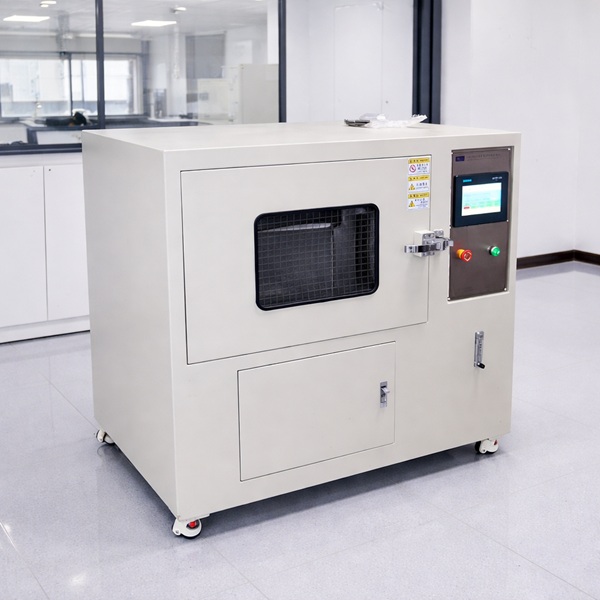

Battery Burning Test Apparatus

Model:LSK-RS

Battery Burning Test Apparatus: Used for flame jet (burning jet) tests on lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, other battery packs for portable electronic products that can be carried in a pocket, and handheld electronic products equipped with non-user-replaceable batteries/battery packs. Complies with GB 31241-2014 and related standards.

Product Overview

I. Overview of the Battery Burning Test Apparatus

The apparatus is used for flame jet (burning jet) tests on lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, other battery packs for portable electronic products that can be carried in a pocket, and handheld electronic products equipped with non-user-replaceable batteries/battery packs. It complies with GB 31241-2014 and other applicable standards.

20260201/61b0a7103424ea7d12cf9fd1b9d22cc6.jpg

II. Main Technical Specifications

  1. Operation: PLC control or PC control; TFT true-color LCD display.

  2. Burner: Imported ED&D Bunsen burner; nozzle inner diameter (100 ± 2) mm.

  3. Flame application time: 1 s–3600 s, accuracy ±0.1 s.

  4. Afterflame time: 1 s–3600 s; control accuracy ±0.1%.

  5. Flame height: 10–75 mm (±2 mm, adjustable).

  6. Test rod diameter: 6.4 mm × 305 mm.

  7. Test chamber/hood width: Octagonal.

  8. Test chamber/hood height: (305 ± 5) mm.

  9. Ignition device: Automatic ignition (remote control effective within 8 m); supports remote ignition and provides a reliable remote emergency shut-off device.

  10. Control mode: Fully automatic control throughout the test process.

  11. Burning gas requirement: Methane with purity ≥98%.

  12. Power supply: AC 220 V, 50 Hz, 1-phase.

  13. Total power: 200 W.
